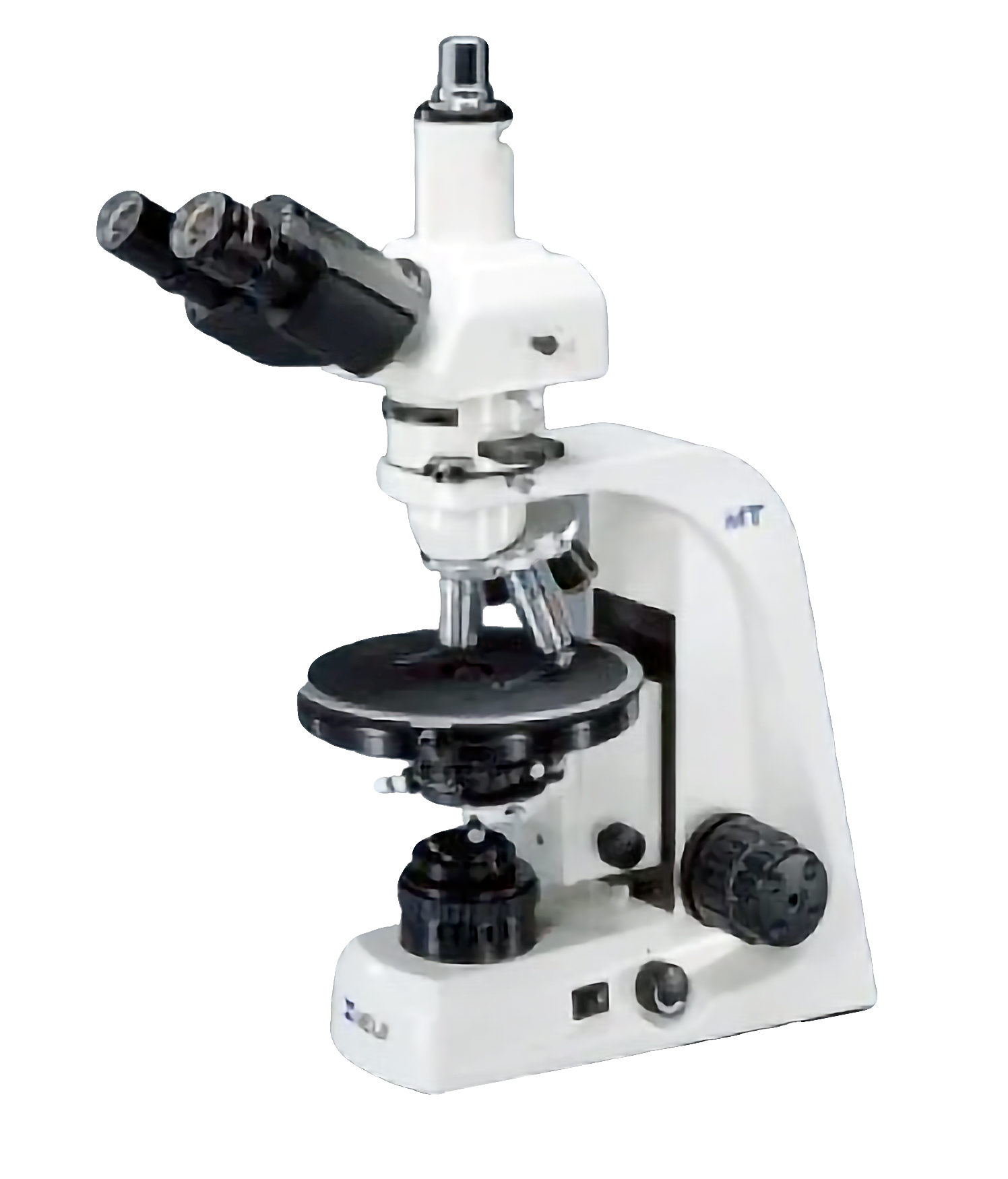

MT6120 & MT6130 Polarizing Asbestos Microscope for Fiber Identification

The MT6120 & MT6130 Series Asbestos PLM Microscopes for Bulk Fiber Identi cation (NIOSH 9002) The MT6120 & MT6130 Series has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications. Ergonomic placement of controls allows for stress free operation, increased lab ef ciency and maximum productivity. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ In nity Corrected objectives and a 10X Dispersion Staining Objective. The MT6120 & MT6130 Series offers an outstanding range of features and optical performance with an emphasis on all newly engineered high performance optics based on Meiji Techno’s ICOS Optical System (In nity Corrected Optical System). The new strain free optics, provide exceptionally bright, crisp images, with good color rendition and superior at elds of view. Package Contents: Viewing Head: Binocular (in MT6120) or Trinocular (inMT6130) series Objective Lenses: Infinity corrected DIN plan strain free brightfield polarizing 10x, 20x, 40xs and 10x central stop dispersion staining objective. Objectives are mounted in centerable quintuple nosepiece. Eyepieces: Siedentopf trinocular head with DIN standard KHW-10x focusing eyepiece with cross-line and guide pin and DIN standard KHW-10x compensating eyepiece, FN 20. Trinocular head has an 80/20 beam splitter for photo work. Total Magnification: 100x, 200x, 400x. Specimen Stage: Rotatable, circular stage with 360° graduations and vernier. Includes two stage clips. Focusing: Coaxial low-positioned coarse and fine focus controls, graduated to 2 microns per division, fitted with tension adjustment and safety auto stop. Polarizer: Rotatable polarizer in swing-out mount with detent at 0° and 90°. Analyzer mounted in slide of East – West insertion. Bertrand lens with field limiting stop mounted in slide for East – West insertion. Includes compensator plate: first order red plate c.550nm. Condenser: Strain free Abbe NA 1.25 condenser includes sliding mount with annulus for 10x, 20x, 40x phase or dispersion staining objectives, iris diaphragm and dovetail mount. Illumination: Built-in transmitted light Koehler illuminator with 6v 30w halogen lamp, including variable intensity control and transformer. Light Focusing: Strain free achromat condenser, NA 1.25, with aperture iris diaphragm and filter holder. Includes blue daylight filter, 29.8mm diameter. Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days. Includes: Blue clear daylight filter, dust cover and owner’s manual.
