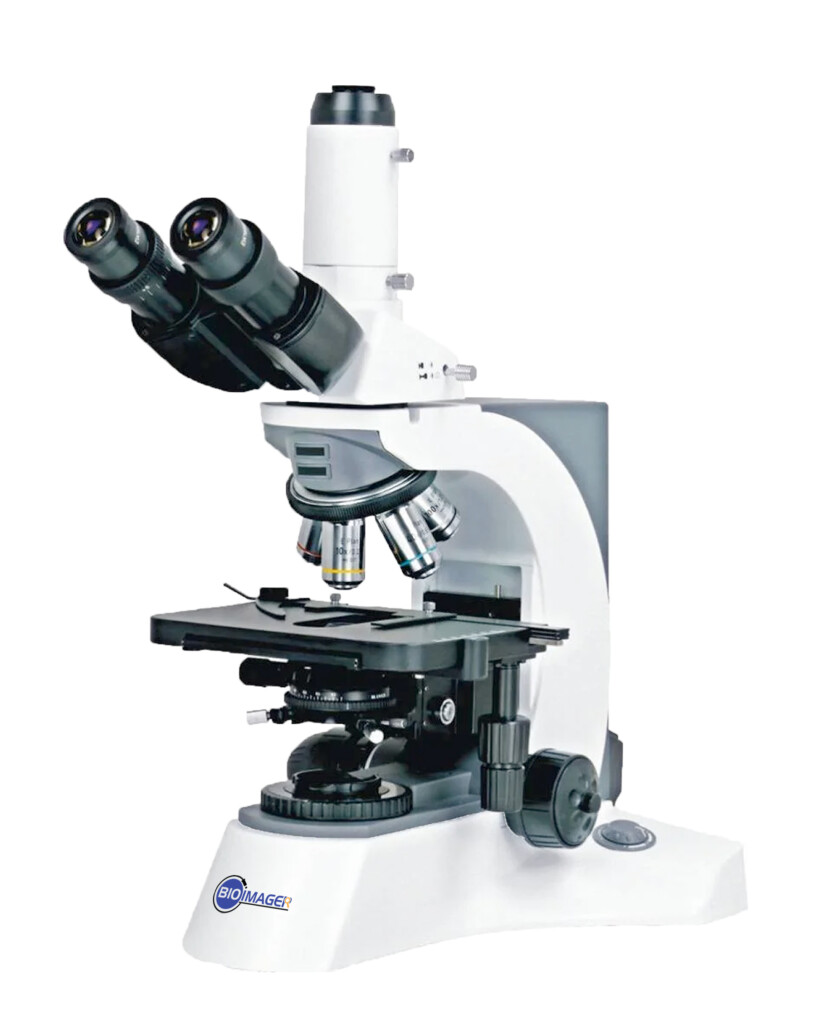

BUM500DIC Upright Biological Microscope with DIC and Phase Contrast Imaging

Features： Comfortably observing with compensation free trinocular head Inclined at 30° Suitable for observer with wide interpupillary range of 48-75mm Larger viewing area with extra wide field eyepiece EW10×/ 22 Focus control with diopter adjustable Big operating space with backward quintuple nosepiece Rectangle double layers mechanical stage 185×142mm, moving range 75×55mm, comfortable operation with low position adjustable knobs Perfect image with infinite plan achromatic objective Overcoming illumination asymmetry at low magnification observation With aspherical condenser and Kohler illumination, providing enough, even and high contrast illumination for various objective observations. External illumination, halogen lamp 6V/ 30W, brightness adjustable, 24V/ 100W for optional 1. Biological Microscope BUM500DIC Viewing Head Seidentopf Trinocular Head ● Tiltable Binocular/Trinocular Head ○ Eyepiece Extra Wide Field Eyepiece EW10×/ 22 ● Nosepiece Backward Quintuple Nosepiece ● Backward Sextuple Nosepiece ○ Objective Infinite Plan Achromatic Objective 4× ● 10× ● 20× ● 40× ● 100× ● Objectives for Dark Field 100× ○ Condenser Swing-out Condenser NA 0.9/ 0.25 ● Stage Double Layers Mechanical Stage 185×142/ 75×55 ● Illumination External Illumination, Aspherical Collector, Halogen Lamp 6V/ 30W ● External Illumination, Aspherical Collector, Halogen Lamp 24V/ 100W ○ LED Illumination ○ Photo Attachment ○ Video Adapter C Mount 1× ○ C Mount 0.5× ○ Filter Blue Filter ● Green Filter ● Multi Viewing Attachments Multi Viewing Attachments for 5 persons ○ Multi Viewing Attachments for 3 persons ○ Multi Viewing Attachments for 2 persons ○ Polarization Attachment ● Phase Contrast Kit Turret Phase Contrast Kit ● Dark Field Attachment ○ Epi-fluorescent Attachment ○ DIC Filter ● Drawing Attachment ○ Note: ●Standard Outfit, ○Optional 2. Phase Contrast Kit 4x, 10x, 40x and 100x (oil) Phase Contrast lenses Phase contrast alignment tool Phase contrast turret condenser (Please see the video and sample images in the Images/Videos Tab). 3. DIC Kit Polarizer 360 rotating Analyzer DIC Filter 20x and 100x DIC Lenses
