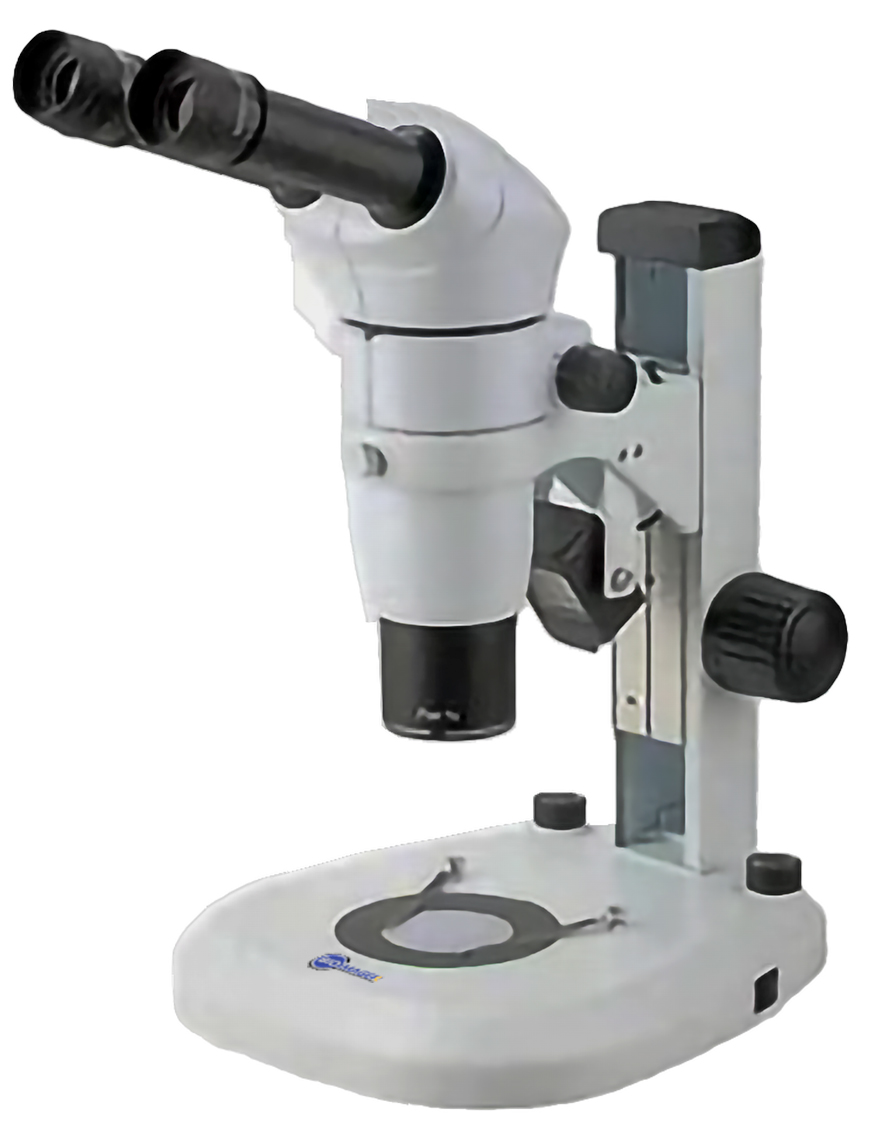

BSM500Bi Bincoular Series Stereo Microscoope

BSM500 Series Microscope Configuration Ergonomic tilting and rotating headEyepieces tilt and rotate to adjust for operator height. Eyepieces rotate 180Eyepeices tilt with 3″ travel. Inclination is adjustable from 0° to 45° for optimum user comfort. 20° fixed head Eyepiece inclination of 20° allow you to observe without having the lean forward which reduces fatigue during long hours of operation. System Diagram OPTIONAL ITEMS BSL-150A Series Cold Light Illumination   BSL-150A Models A1 (○) A2 (●) A0 (○) Power Supplier Switch Power 110V/ 220V ● ● ● T-H Lamp with Reflector 20V/ 150W Brightness Adjustable Multi-coated IR Cutoff Filter for Heat Insulation Fan Cooling Size: 260×120×150mm Weight 3.3 kg Single Light Guide Rigid Flectional Tube, Length 500mm ● Dual Light Guide Rigid Flectional Tube, Length 500mm ● Ring Light Guide Flexible Tube, Length 1000mm, Adapter Ring Size Φ50mm/ Φ60mm ● Kohler Illumination Attachment Attached on Single or Dual Light Guide to adjust and obtain Even Illumination ● ● LED Ring Light (for brightfield imaging) Digital High- Precision XY Micrometer Stage   Specification of Stage: –Stage size: 140 x 140 x 65mm (L x W x H) –Net Weight: 2.5kgs –Connection size for stand: 95mm Specification of Micrometer: –Measuring: 0-25mm/0-1″ –Resolution: 0.001mm/0.00005″ –Accuracy: 0.002mm –Power supply: one silver-oxide button battery SR44 (1.5V) –Operating temperature: 0- 40° –Storage temperature: -20-70° –No influence within relative humidity Mechanical XY Stage Heating Stage Check the detailed specs and other options here. Episcopic Illumination Other Accessories Polarizer & Analyzer Darkfield Imaging
