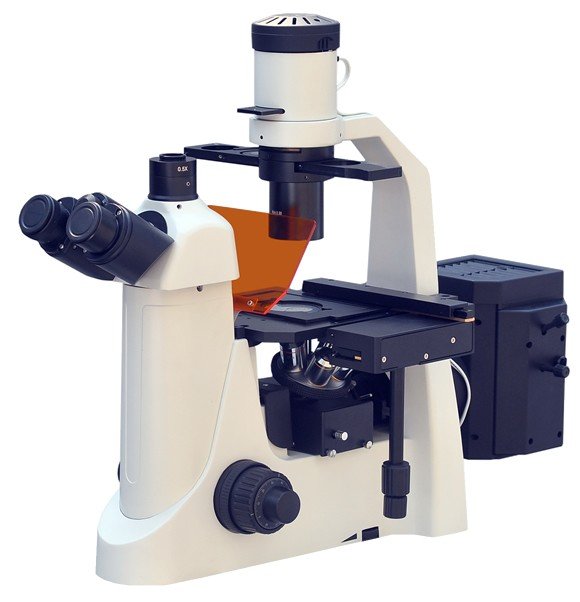

BIM-800FLS Inverted Epi-Fluorescent Biological Microscope

BIM-800FLS Inverted Epi-Fluorescent Biological Microscope BIM-800FLS Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture with high quality optics and advanced fluorescent imagig capability. Infinity correcetd optical system gives excellent imaging performance. Super high resolution fluorescent objectives are offered to generate high quality fluorescent images. This user-friendly microscope acquisition systems allows undergraduate and graduate students with various degrees of microscopy experience to examine a wide range of samples  such as live cells, fixed cell, histological preps, microfluidic devices, bead samples, range of fluorophores, etc with high reproducibility. Features UCIS Infinity Independent Achromatic Optical System Seidentopf binocular viewing head, inclined 30o, 52-75mm interpupillary distance settings, ±5°Diopter adjustment WF10X plan eyepieces, 20mm field of view, high eye point up to 21mm Quintuple nosepiece inward facing with positive click stops Infinity long work distance plan Achromatic 10X, 20X, 40X and Infinity long work distance phase-contrast 20X objectives Mechanical stage, 180mmX155mm, move range 80mmX50mm N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm  6 volt 30 watt halogen illumination  Dust cover, power cord Fluorescence illumination system: 100W mercury lamphouse and power supply , B/G/UV/V fluorescence filter block(two groups based on your own choice) 110V-240V Wide voltage Applications It can be used to observe transparent livings which are not stained, particularly living cells, tissues, fluids, sediments etc. It is an ideal instrument for biology, cytology, oncology, genetics, immunology and other research works. It can be used in scientific research institutes, universities, medical care centers, disease prevention, quality inspection, agriculture, animal husbandry and other departments. It can also be used in venereal disease examination and immune diagnosis. Few Highlights Optical System Ask us Plenty of Accessories Epi-Fluorescent Compnents: a) Filter  Sets: B, G, UV, V Excitation filter B/G/U/V, CHROMA Brand Blue Excitation Filter, BP460~490, DM500, BA520 Green Excitation Filter, BP510~550, DM570, BA590 Ultraviolet Excitation Filter, BP330~385, DM400, BA420 Violet Excitation Filter, BP400~410, DM455, BA455   Ask us how to add a new filter set with any specifiction you need. This scope has a 3-spot filter slider. To have a filter wheel, please choose BIM800FLW model. b) illumination SAMSUNG CSC[/caption] 100W Mercury Lamp-House HBO Power Source Fluor alignment obj lens (optional, recommended) Specification Optical System UCIS infinity independent achromatic optical system Frame One-piece construction from arm to base Head Seidentopf trinocular head, 30° inclined, interpupilary distance 52-75mm, diopter adjustable Eyepiece Plan WF10x/20mm, plan, high eyepoint up to 21mm, Centering Attachment Centering telescope Objective Infinity LWD plan achromatic objective 10x Infinity LWD plan achromatic objective 20x Infinity LWD plan achromatic objective 40x Infinity LWD plan phase contrast objective 20x Focus System Coaxial coarse and fine focus mechanism with markings, fine focus sensitivity 1?m, coarse range 14mm Nosepiece Quintuple, reversed type with positive click stops Stage Low position, mechanical stage, size 180x150mm, moving range 80x50mm. Drop specimen holder(?110) Specimen holder Light Source Abbe condenser N.A. 0.30 with iris diaphragm, with phase contrast slider, long work distance 72mm 6V30W Halogen lamp house Electrical part for 6V30W halogen lamp 6V30W Halogen bulb (Osram) 250V/3.15A ?5×20 fuse Power supply 110-240V 50/60Hz Blue filter (?34) Green filter (?34) Yellow filter (?34) Fluorescence 100W mercury lamp house 100W Power supply unit 100W mercury bulb Fluorescence illuminator Excitation filter B Excitation filter G 250V/5A ?5X20 Fuse Phase Contrast Phase contrast slider (for 10x/20x/40x phase contrast and brightfield observation) Other Allen screw driver 2mm Dust cover Power cord   Optional Accessories Item No. Head Seidentopf binocular head, 45° inclined, interpupillary distance 48-75mm, diopter adjustable BIM800FLW-BH Eyepiece WF10x/22mm plan eyepiece, high eyepoint BIM800FLW-10×22 WF10x/20mm, plan, high eyepoint up to 21mm, diopter adjustable BIM800FLW-10×20 WF16x/13mm, plan BIM800FLW-16×13 Objective Infinity plan achromatic objective 4x BIM800FLW-4xbf Infinity LWD plan achromatic objective 60x BIM800FLW-60xLWD Infinity LWD plan phase-contrast objective 10x (positive) BIM800FLW-10xPB Infinity LWD plan phase-contrast objective 40x (positive) BIM800FLW-40xPB Infinity LWD Plan Phase-Contrast Objective 10x (Negative) BIM800FLW 10xNB BIM800FLW-20xNB Infinity LWD Plan Phase-Contrast Objective 40x (Negative) BIM800FLW-40xNB Stage Mechanical Stage, Size 350x208mm?Moving Range 50x50mm BIM800FLW-xy50 Adapter 0.25x C-Mount BIM800FLW-0.25XC Digital camera adapter (need to know camera brand) BIM800FLW-DSLR-X Bulb 6V30W Halogen bulb BIM800FLW-6v30W Specimen Holder 125×85 BIM800FLW-XY-125 Fluorescence Attachment 100W DC Mercury lamp house BIM800FLW-HBO Power supply unit for 100W DC mercury lamp BIM800FLW-HBO-PS Epi-fluorescent illumination,multi-functional semi-reflector BIM800FLW-RF Excitation Filter B, CHROMA Brand BIM800FLW-IB Excitation Filter G, CHROMA Brand
