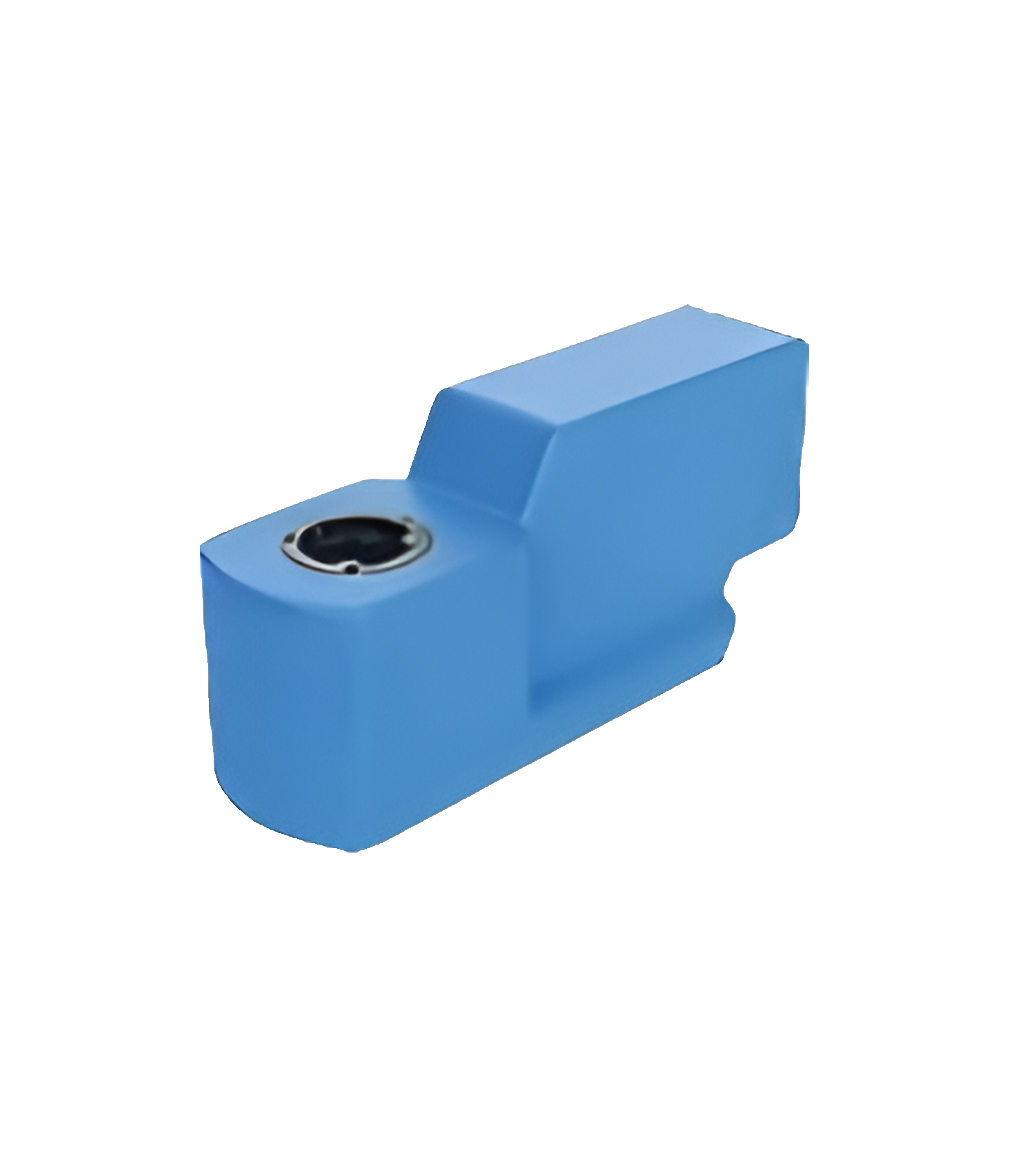

High Speed Spectro-Microscopy System, BSMS500

Intrdouction The high speed spectro-microscope system is loaded on the trans-reflective metallurgical microscope. It is a microspectroscopy analysis platform with high quality and accuracy, high S/N and sensitivity. Transmittance/reflectance spectrum of the full spectrum from UV, visible light to near infrared can be collected quickly by this system. Applications 1. Photonic crystals research; 2. Characterization on optical properties of nano-materials; 3. Optical properties characterization of micromachining materials; 4. Surface Plasmon research. Main technical parameter Item Parameter Optical system Infinite optical system, tube lens f=200mm Observation tube trinocular viewing head, 0.3X CCD mount adapter. Eyepiece 1. Super wide plan eyepiece: WF10X/26mm; 2. 0.1mm reticule eyepiece, WF10X/22mm Objective LWD Infinite plan BD objective: 5X/NA0.20 (W.D=14.47mm), 10X/NA0.25(W.D=16.0mm), 20X/NA0.40(W.D=10.5mm), 50X/NA0.55(W.D=5.1mm) Nosepiece Quadruple nosepiece with DIC jack Stage Precision measurement stage: travel range: 50mm X 50mm; accuracy: 3u L/25. Filter Blue, green and neutral filter Focusing mechanism Motorized Illuminator Transmitted illumination: LED, 5W/ AC85V-260V, brightness adjustable Reflective illumination: Kohler illumination Halogen lamp, 12V50W/AC85V-260V, brightness adjustable with aperture diaphragm and filed diaphragm Polarizing device Analyzer can rotate 360°, polarizer and analyzer can be removed from the optical path. Measuring tool Standard ruler: 0.01mm micrometer Options 1. Professional metallurgical image analysis software with measurement functions2. DIC device 3. ELWD infinite plan BD objective: 80X/0.75(W.D=4.0mm), 100X/0.80(W.D=3.0mm) 4. 300 mega pixel, 500 mega pixel, 800 mega pixel, and 1000 mega pixel CMOS 5. Digital grating 6. Rotary table
