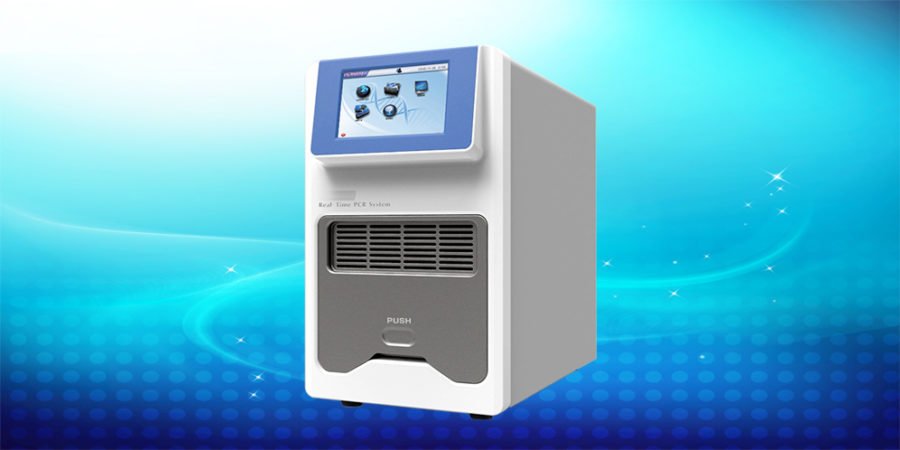

Real-time Quantitative PCR (2 channel) TL988-II

TL988-II Real-time Quantitative PCR (2 channel) Features: Have48 samples positions. Sensitive and precise thermoelectric systems. Various operation modes for use. Power failure protection. Function of intelligent auxiliary baseline selection.  Specifications: PCR-TL988 Single channel Dual channel Sample capacity 48 positions Temperature range 4℃-99℃ Heating rate/ Cooling rate ≥4℃/s(Max) 3℃/s /2℃/s Profiles 1-9 Cycles 1-99 Temperature steps 1-9 Hold time 1-9999sec Excitation wavelength 470nm Channel 1:470-505nm Channel 2:525-545nm Emission wavelength 530/570/605/640/710nm Channel 1: 523-543nm Channel 2:550-615nm Application consumables Thick-walled 0.2ml PCR tubes,8-strip tubes Reaction volume 10-100ul Photo detector PMT(Photomultipier tube) PMT(Photomultipier tube) Correlation coefficient of nucleic acid precision R≥0.997 Reproducibility CV≤2.1% Temperature accuracy ±0.1℃ Temperature uniformity ±0.3℃ Testing range 101-1010 DNA/RNA copy/ml 101-1010 DNA/RNA copy/ml System interfaces RS-232c Power supply AC 220/110V 10% ,50/60Hz 10% Power 1100W Operating environment Ambient Temperature 5℃-40℃,Relative Humidity ≤80% Weight 25kg 27kg Dimensions(W*D* H) 550mm*420mm*340 mm 550mm*420mm*350 mm
