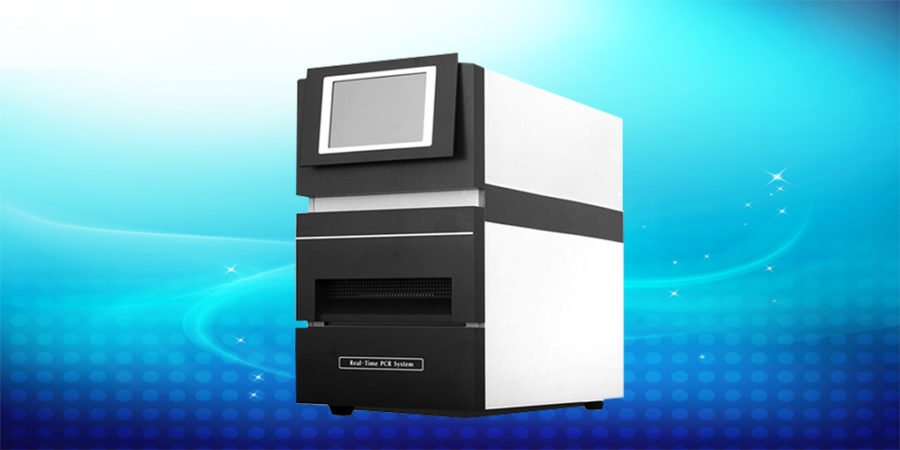

Real-time Quantitative PCR (4 channel) TL988-IV

Real-time Quantitative PCR (4 channel)  TL988-IV With capacity of 96 sample positions and touch screen, the 4 channel real-time PCR has more better heating/cooling rate and more precise temperature control. Applications: Diagnosis of clinical disease. Diagnosis of animal disease. Food security. Science and research. Specifications: Model PCR-TL988-IV Sample capacity 96,include positive and negative control Micro plate type 96 well plate Reaction Volume 5~50ul Detector Photodiode Optical system Highlight LED light source Temperature range 4℃~99℃ Lid temperature 100℃~120℃ Heating/cooling rate 0.1~4.2℃/s Temperature uniformity Temperature accuracy Testing range 101-1010 DNA/RNA copy/ml Reproducibility CV Correlation coefficient of nucleic acid precision 0.997 Temperature steps 1~99 Cycles 1~999 Hold time 4℃long-term Excitation wavelength Channel 1: 470nm Channel 2: 523nm Channel 3: 571nm Channel 4: 630nm Emission wavelength Channel 1: 525nm Channel 2: 564nm Channel 3: 512nm Channel 4: 670nm Display 7 inch full-color touch screen Power supply AC 220/110V 10% ,50/60Hz 10% Power consumption 1100W Dimensions(W*D* H) 540*300*480mm Weight 35kg
