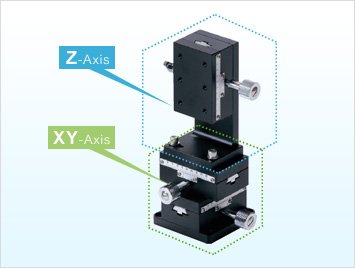

Miruc XY Axis Drive Master Technique Stage XYJK-40 XYJK-60 XYJK-90 Model Stage surface (mm) Degree of movement (mm) Degree of movement per handle rotation (mm) Movement precision (μm) Load bearing N (kgf) Minimum scale reading (mm) Weight (kg) Straightness Degree of parallelism during operation XYJK-40 24.8 x 42 ± 12 18 20 25 24.5 (2.5) 0.1 0.29 XYJK-60 40 x 60 ± 21 18 30 30 34.3 (3.5) 0.1 0.51 XYJK-90 40 x 90 ± 35 18 30 30 34.3 (3.5) 0.1 0.73 * Material: stage body: aluminum alloy, surface treatment: matt black alumite
