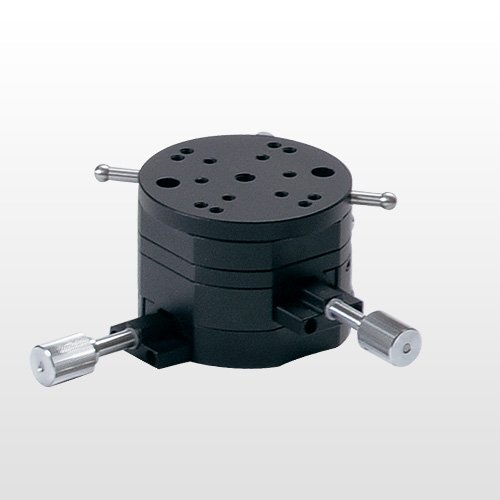

Thin XY Rotational Stage

Thin XY Rotational Stage Almost 30% thinner than conventional combinations, this is a disk-shaped, compact and multi-function stage. Rotation and sliding action along X and Y axes. * XYR-90 side has different stages, making it ideal for applications such as the following.           XYR-60 XYR-90A XYR-90B XYR-90C   Model Stage surface(mm) Degree of movement(mm) Degree of movement per handle rotation(mm) Movement precision (μm) Load bearing N(kgf) Weight(kg) Straightness Degree of parallelism during operation XYR-60 φ 60 ± 21  360° 4.2 30 30 34.3 (3.5) 0.39 XYR-90A φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.88 XYR-90B φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.84 XYR-90C φ 90 ± 35  360°  ± 20° 4.2 30 30 29.4 (3) 1.03 * Material: stage body: aluminum alloy, surface treatment: matt black alumite
