M95 Plan Apo Industrial Objective Lenses

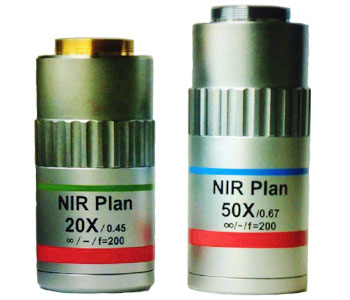

M95 Plan APO Objectives for Metallurgical/Industrial  Microscopes, Visible, NIR and NUV The M95 objective lenses are offered at different wavelengths: a) Visible (VIS) range (400-700nm) b) Near Infrared  (NIR) range (650-800nm) which are also suitable for VIS range c) Near Ultraviolet range (200-400nm), which can also be used for VIS range Plan Apo 20 a) NUV Range Name (objectives) Magnification Numerical aperture(N.A) Working distance (mm) Conjugate distance(mm) Parfocalization distance(mm) Infinity M Plan APO HL Objective (NUV) 20X 0.40 17.15 ∞ f T=200 95 50X 0.43 14.81 50X 0.70 3.50     b) VIS Range Name (objectives) Magnification Numerical aperture (N.A) Working distance (mm) Conjugate distance (mm) Parfocalization distance (mm) Infinity M95 Plan APO SL Objective (Visible) 2X 0.055 34.60 f=200 95 5X 0.14 44.50 ∞ f T=200 95 10X 0.28 34.00 20X 0.29 31.00 50X 0.42 20.50 100X 0.55 12.50       c) Near Infra Red (NIR) Obj lenses Name Magnification N.A. W.D.(mm) Focus Depth of Field (μm) Resolution Length (mm) (μm) M95 Long Working Distance Infinity Plan Apo NIR Objective 2x 0.055 34.6 100 91 5 5x 0.14 45 40 14 2 10x 0.28 34 20 3.5 1 20x 0.29 30.8 10 3.5 1 50x 0.42 20.5 4 1.6 0.7 d) Large-field  industrial obj lenses These are an unusual 0bjective lenses with large field of view size. There are always some special applications that appreciate such an objective lens existence. Magnification Model NA WD(mm) f’ (mm) R (μm) DF (μm) on object (mm) on image (mm) Screw 1x MPlanApo(95)-1X 0.015 14 200 22 148 34 34 M26 2x MPlanApo(95)-2X 0.05 20 100 6.67 133 23 46 M26 5x MPlanApo(95)-5X 0.12 22 40 2.7 23 10 50 M26 7x MPlanApo(95)-7X 0.22 36.4 28.57 1.25 5.7 3.6 25 M26 10x MPlanApo(95)-10X 0.3 34 20 1.1 3.7 4.4 44 M26 10x MPlanApo(95)-10XB 0.3 34 20 1.1 3.7 4.8 48 M26 20x MPlanApo(95)-20X 0.3 33 10 1.1 3.7 2.5 50 M26 50x MPlanApo(95)-50X 0.5 20.7 4 0.67 1.33 1 50 M26 100x MPlanApo(95)-100X 0.8 4 2 0.42 0.52 0.5 50 M26 150x MPlanApo(95)-150X 0.6 4.4 1.33 0.56 0.93 0.33 50 M26 200x MPlanApo(95)-200X 0.65 2.2 1 0.51 0.79 0.25 50 M26 250x MPlanApo(95)-250X 0.7 2 0.8 0.48 0.68 0.2 50 M26 500x MPlanApo(95)-500X 0.75 1.96 0.4 0.44 0.59 0.1 50 M26 e) High Numerical Aperture NA and High Resolution NIR APO Objectives NAME N.A. W.D. (mm) f′ (mm) R (μm) ±Δp VISUAL FIELD (mm/φ) VISUAL FIELD (mm/1/2CCD) TRANSMITTANCE  (μm) REMARK NIR Plan Apo 20X 0.45 16.7 10 0.61 1.36 Φ1.2 0.24×0.32 70%,90�hromatic Wavelength:780nm NIR Plan Apo 50X 0.8 3.34 4 0.34 0.43 Φ0.48 0.10×0.13 70%,90�hromatic Wavelength:780nm NIR Plan Apo 50X 0.67 10 4 0.7 1.6 Φ0.48 70%,90�hromatic Wavelength:780nm
