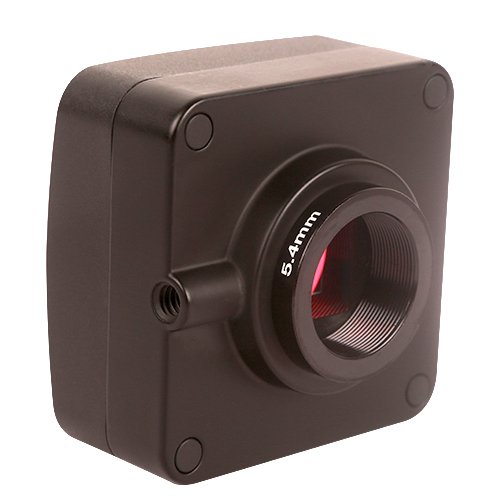

BIO-WCAM Series C-mount WIFI CMOS Camera

BIO-WCAM is WIFI camera and it adopts ultra-high performance CMOS sensor as the image-picking device. WIFI is used as the data transfer interface. When the BIO-WCAM camera is attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously. The camera includes ToupView images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable  app for viewing, capturing, and editing images. Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity Dynamic Range SN Ratio FPS/Resolution Binning Exposure BIO-WCAM1080PA WP601080A 1080P/IMX222(C) 1/2.2″(5.38×3.02) 2.8×2.8 510mV with 1/30s 0.15mv with 1/30s 25@1920×1080 1×1 0.059ms~1941ms BIO-WCAM0720PB WP600720B 720P/MT9P001(C) 1/2.5″(5.63×3.17) 2.2×2.2 1.0 V/lux-sec 61dB 43dB 10@1280×720 2×2 Auto BIO-WCAM0300KPA WP600300KA 0.3M/MT9V011(C) 1/4″(3.58×2.69) 5.6×5.6 1.9V/lux-sec 60dB 45dB 25@640×480 1×1 Auto
