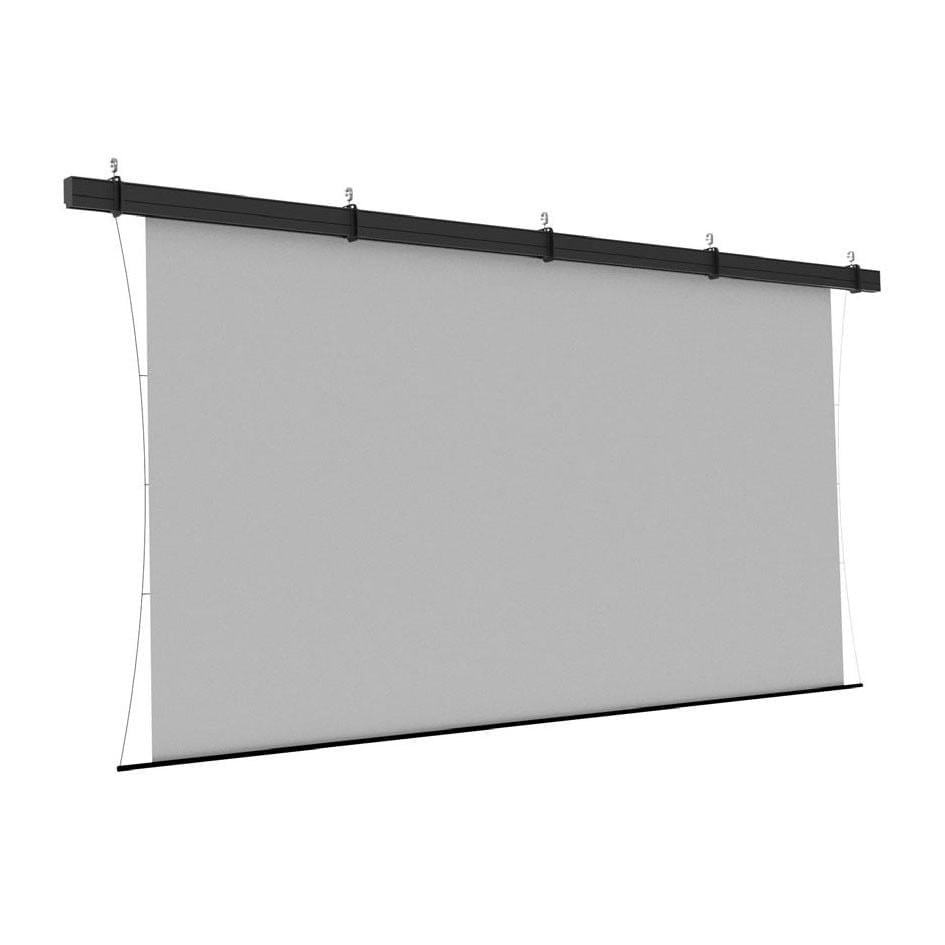

Cover Canvas is fully protected by a closed body in black-anodised aluminium for limited weight and improved space-efficiency.Roller system Suspended tubular winding with a full-length anti-warping system.Motor SOMFY tubular dual-motor (5-year guarantee) with motor coupling module for perfect synchronisation. Standard order options: remote radio-control or wall-mounted (other controller options available). Fine-tuning at end of travel (top and bottom of screen) Power: 110 Nm Speed: 17 RPM. Lifting speed: ± 10 cm/s.Weighting Integrated weighted pole (2.3 kg/m).Fixing Mounting clamps for rods diameter Ø 48.3 to 50 mm inclusive Mountings every 2 to 3 m with possibility to adjust level.Dimensions Maximum size is 60 m wide x 10 m high.Supplied in: Up to 12 m long, can be pre-fitted into a wooden box. Over 12 m, packaged in multiple sections for on-site assembly by a team off specialist technicians.Technical specifications See PDF in the "Downloads" tab below.
