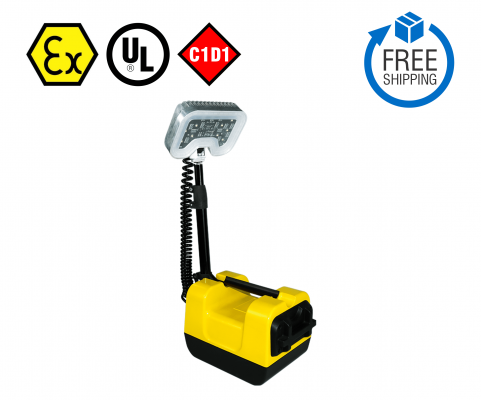

Description FEATURES 3 pre-set light output levels Up to 1,600 lumens (calculated) Up to 10 hrs of run time Full time battery level indication with low level flashing indicator Deployable mast with 360 degree rotation Multiple deployment positions Valid over the entire temperature range from -20°C to 40°C (-4 ºF to 104ºF) RATINGS AND CERTIFICATIONS UL913: Class I, Division 1, Groups A, B, C and D, T4 Ex ia IIC T4 Ga Class I, Zone 0, AEx ia IIC T4 Ga IECEX Ex ia IIC T4 Ga ATEX II 1G Ex ia IIC T4 Ga Specifications Body Plastic Head Aluminum alloy Lens Plastic Lumens (Max) 1600lm Lumens (Working) >500lm Lamp Heads 1 Lamp Type LED Beam Spread 125° IP Rating IP20 CCT Range 3000K-6500K Run Time 10 hrs (Max) Battery Type Ni-MH Battery capacity 10.8V, 9Ah Rated Power 5W-19.5W Rechargeable Yes Charging Volts DC10.8V-14.4V Battery Level Indicator Full-time battery level display and low battery warning (visible flashing) Volts 10.8V(Battery); AC100V/277V(Charger) Weight 15.4 lbs (7kg) Light Modes High / Low / Flashing Dimension(L×W) 355mm[14.0″]×205mm[8.1″] Deployable Height 1 Min.567mm[22.3″], Max.800mm[31.5″] Deployable Height 2 Min.636mm[25.0″], Max.910mm[35.8″] Color Yellow Download Product Cut Sheet Knowledge Base What is Class 1 Division 1 LED lighting? Class 1 Div 1 LED Lighting (C1D1) is explosion-rated lighting designed to work in explosive environments where hazardous conditions and concentrations of flammable combustible vapors, liquids or gases, are always present. Class 1 Areas are defined as groups and are categorized by the type of material found. What is class1 luminaire? Class 1 Division 1 LED lighting is used in industrial buildings to reduce the risk of high voltage equipment igniting flammable substances. Typical Class 1 Division 1 lights are designed to be explosion proof, making them suitable for exposure to these volatile chemicals. What is a Class 1 Div 1 area? A Class I, Division 1 area encompasses the combination of Zone 0 and Zone 1 areas. An area where ignitable concentrations of flammable gases, vapors or liquids are present continuously or for long periods of time under normal operating conditions. What is the difference between ATEX and explosion proof? ATEX and ex-proof classifications help manufacturers select and install equipment for potentially explosive atmospheres. ATEX is used in Europe, whereas Ex-Proof is used in North America and Canada. The process environment and properties of any materials that will be present need to be ascertained. What makes a light explosion proof? To be certified, explosion-proof lights typically will be made of durable, non-sparking material, a very thick glass globe over the bulb, and other features to ensure that the worker and the surrounding environment remains safe should an ignition occur inside the light. Where can you use explosion proof lighting? Hazardous Area/Explosion Proof lights are available for a wide variety of applications. Examples include linear wall/ceiling fixtures, flood lights, dock lights, high bay lights, wall packs and shop lights. What class is explosion proof? There are three classes of explosion proof lights known as Class I, Class II, and Class III. These are the broadest sense in which explosion proof lights are distinguished from each other. The classes are each broken down further into two separate divisions. Is explosion proof the same as intrinsically safe? Therefore, Intrinsically Safe means that an apparatus, such as a temperature transmitter is not capable of causing an explosion. Explosion Proof means that should an explosion occur, it will be contained within an enclosure. What is ATEX Zone 1 certification? Zone 1 – Explosive mixtures are present intermittently. Category 2 or 1 equipment required. Zone 2 – Explosive mixtures are present abnormally or infrequently. Category 3, 2, or 1 equipment required. Can you use Ex e in Zone 1? Hazardous area Ex e isolators provide safe electrical isolation for low voltage power in Zone 1 & Zone 2 (gases) and Zone 21 & Zone 22 (dusts) explosive atmospheres. What is explosion proof type? Ex-Proof housing contains either cast aluminum or stainless steel, with sufficient mass and strength to subdue ignition, should flammable substances penetrate the internal electronics. Bulk Order / Custom Quote Need to order in bulk volume or with custom requirements? Please use the form below:Please enable JavaScript in your browser to complete this form.Name *FirstLastOrganization *Email *Phone Product of InterestQuantity RequiredShipping AddressMessagePlease prove you are human by selecting the tree:Submit
